Using Wokwi with NuttX

In this article, we will examine how the NuttX real-time operating system (RTOS) can be used on the Wokwi simulator, what adjustments need to be made on the NuttX side for this and what advantages the Wokwi simulator offers.

What is Wokwi?

#

Wokwi is an online Electronics simulator. You can use it to simulate Arduino, ESP32, STM32, and many other popular boards, parts and sensors.

What are the Advantages of Wokwi?

#

• It provides the opportunity to start the project regardless of the delivery time of the parts required for the project.

• There is no way to destroy virtual hardware. For that reason cash loss due to connection error is prevented and it provides the opportunity to undo the transaction after a step goes wrong.

• Provides convenience in getting help and feedback through the link to the project.

• Helps distinguish hardware and software based problems. This way, you can focus on the code side.

• It allows the use of any number of hardware regardless of the project budget.

Source

Note: Of course, there will be differences between the simulation and the field. For this reason, the project running in simulation should not be taken to the field without testing.

Supported devices

#

Here is the list of supported devices, separated by the core architecture.

Source. Apart from these, you can use this link for supported sensors and more.

Alternatives and Differences

#

Among others, the most widely-known alternative to Wokwi is QEMU. QEMU stands out with faster operation if special optimizations are used. Wokwi offers more platform support, ease of installation, and simulation features with external parts.

Simulating NuttX on Wokwi

#

Creating a NuttX System Image

#

• You can create the development environment for Xtensa-based (ESP32, ESP32-S2, ESP32-S3) microcontrollers using this link.
• You can create the development environment for RISC-V based (ESP32-C3, ESP32-C6, ESP32-H2) microcontrollers using this link.

Wokwi does not support compiling NuttX projects internally like ESP-IDF or Zephyr. Therefore, it is necessary to compile locally and continue the simulation part via Wokwi. In other words, we will simulate the NuttX output compiled in our own development environment via Wokwi.

In this article, we will use the nsh application for the ESP32 microcontroller as an example. If there is a previously selected configuration, use the following commands to reset the project and to select the configuration needed for the nsh application on the ESP32.

make distclean
./tool/configure.sh esp32-devkitc:nsh

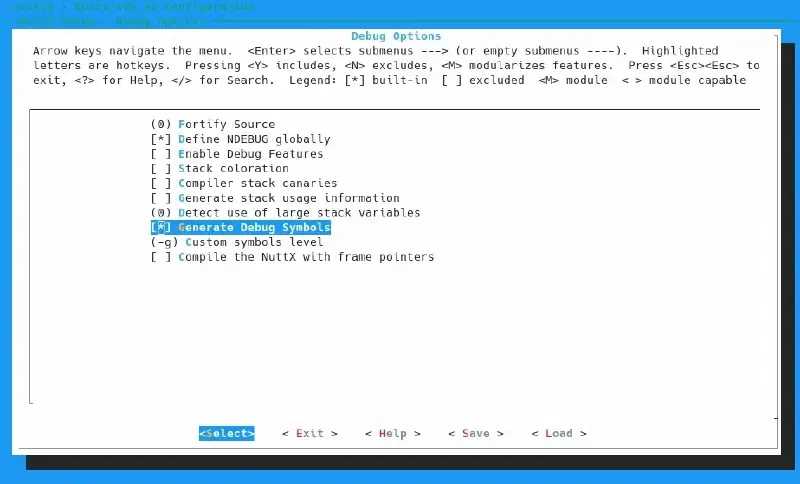

With these commands, we have selected the necessary card and configuration. To perform debugging, we need to run make menuconfig to open the Build System menu, select Debug Options, and activate the Generate Debug Symbols option. We can use the following command for the relevant setting:

make menuconfig

The result will look something like this:

After configuration and setup, we can use the following command to compile:

make

We should see the following output:

LD: nuttx
CP: nuttx.hex
CP: nuttx.bin

After the compilation process is successfully completed, we need the nuttx file for the simulation.

Simulating NuttX Application in Wokwi

#

To use Wokwi with Visual Studio Code, you must first download the Wokwi for VS Code plug-in and enter the license key. You can get more detailed information about it here.

Wokwi basically works on two files - wokwi.toml and diagram.json:

• wokwi.toml: A configuration file that tells Wokwi how to run your project. Information such as ’elf’ and ‘firmware’ file paths of the application are saved in this file.

• diagram.json: A diagram file that describes the circuit. Information such as the microcontroller to be added to the circuit, peripheral units such as the sensor to be connected to the microcontroller, their locations, color and interconnection of the parts in the circuit are recorded in this file. You can use this link for detailed information.

For details about Wokwi configuration files, see here.

If we go back to the Simulation section after these definitions, we need to do two things:

• Add the nuttx file path to the wokwi.toml file
• Add the circuit diagram in the diagram.json file to use in simulation

The file contents we need in this example project will be as follows:

wokwi.toml

[wokwi]
version = 1
firmware = 'nuttx'
elf = 'nuttx'

diagram.json

{
  "version": 1,
  "author": "Anonymous maker",
  "editor": "wokwi",
  "parts": [
    { "type": "board-esp32-devkit-c-v4", "id": "esp", "top": 0, "left": 0, "attrs": {} } }
  ],
  "connections": [
    [ "esp:TX", "$serialMonitor:RX", "", [] ],
    [ "esp:RX", "$serialMonitor:TX", "", [] ]
  ],
  "dependencies": {}
}

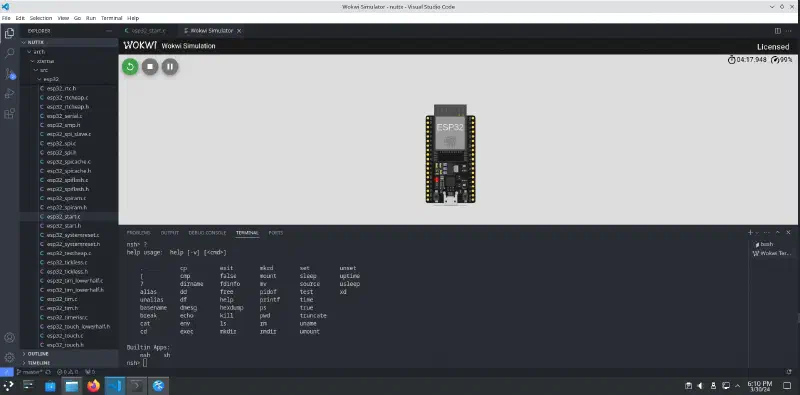

After creating the necessary files, we can start the simulation by pressing F1 and selecting the Wokwi: Start Simulator option:

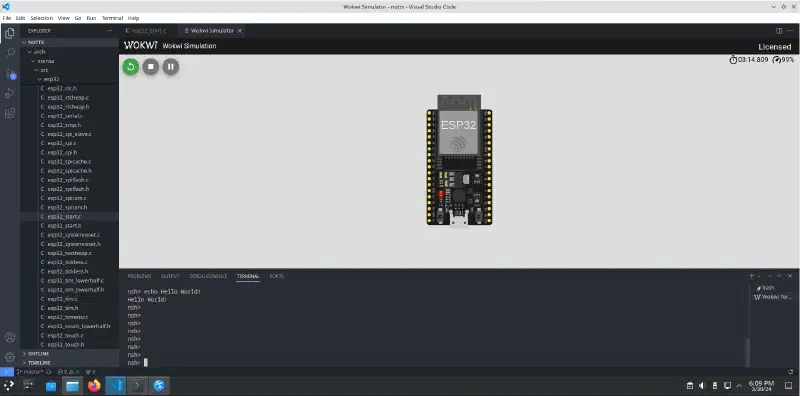

After that, Wokwi will be up and running and you can start using NuttX.

Note: nsh may not appear at first startup. You can switch by pressing the Enter key.

Debugging with Wokwi

#

Wokwi comes with built-in debugging support. For this process, first the cpp tools plug-in in the VSCode editor must be installed. Source

Afterwards, in the wokwi.toml file, we need to add the following line to the [wokwi] section:

gdbServerPort=3333

As a result of the process, the wokwi.toml file will look like this for this example:

[wokwi]
version = 1
firmware = 'nuttx'
elf = 'nuttx'
gdbServerPort=3333

Also you need to create a launch configuration file for Visual Studio Code. You can create the file at .vscode/launch.json path or you can use Open user settings (JSON) option with pressing F1 key.

Here’s a template you can use:

{
  "version": "0.2.0",
  "configurations": [
    {
      "name": "Wokwi GDB",
      "type": "cppdbg",
      "request": "launch",
      "program": "${workspaceFolder}/nuttx/nuttx",
      "cwd": "${workspaceFolder}",
      "MIMode": "gdb",
      "miDebuggerPath": "/debugger/path/xtensa-esp32-elf-gdb",
      "miDebuggerServerAddress": "localhost:3333"
    }
  ]
}

After that, press F1 and select Wokwi: Start Simulator and Wait for Debugger to start the simulator. Wokwi will then go into standby mode to allow the debugger to connect. In a separate terminal tab you can run GDB with xtensa-esp32-elf-gdb or similar commands for Xtensa devices or riscv-none-elf-gdb for RISC-V devices. After running the debugger, you can start to debug with Wokwi using the F5 key in simulator.

For more detailed information about the debugging, you can visit this link.

Of course, our hope is that you will not need this process :)

Conclusion

#

In this article, we have seen the features of Wokwi and how it can be used with NuttX. Of course, all the features of Wokwi are not limited to these. You can use this link to get more detailed information and examples about Wokwi.
