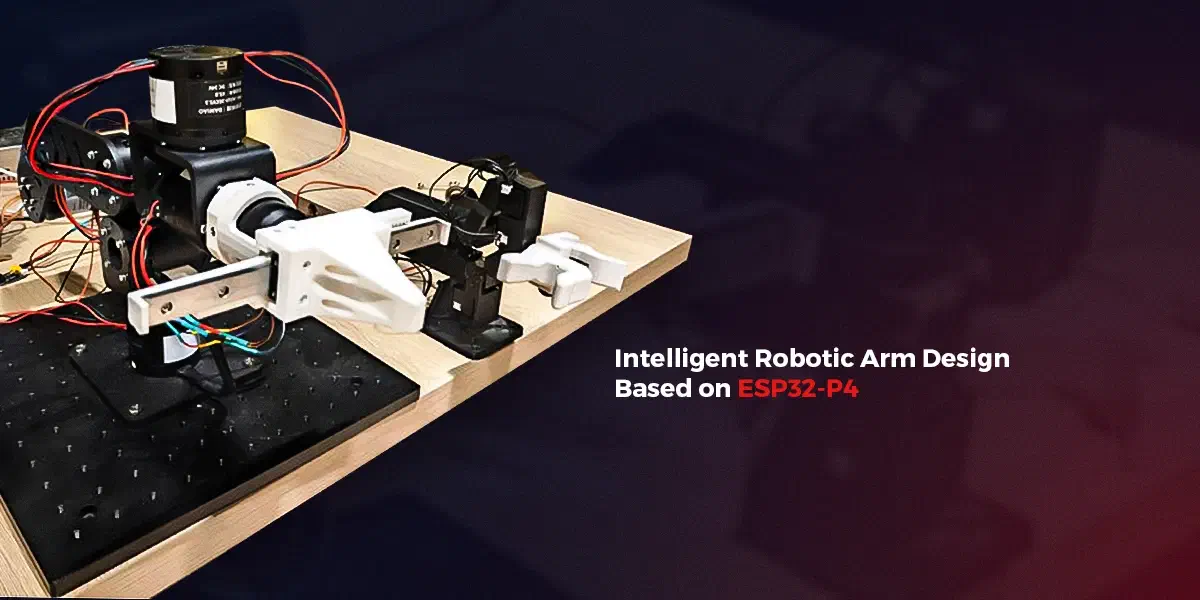

Intelligent Robotic Arm Design Based on ESP32-P4 for Industrial Applications

With the advancement of AI technology in recent years, the robotics field has entered the era of embodied intelligence, enabling robots to learn and perceive their environment. The ESP32-P4 high-performance MCU, with its powerful computing capabilities and rich peripheral interfaces, provides an ideal platform for building intelligent robotic arm control solutions. Specifically, this article presents the robotic arm solution with the following advantages:

• Onboard Kinematics: The onboard kinematics library implements forward and inverse kinematics using an iterative method based on the robotic arm’s D-H parameters, eliminating the need for external computing platforms.
• Onboard Vision: With USB camera and color-detect model, combined with a calibration matrix, the robotic arm can accurately grasp colored blocks. Additionally, esp-dl provides lightweight models such as yolo11n and esp-detection, enabling custom object grasping.
• Remote Control: By operating a small robotic arm of the same configuration, joint data is wirelessly forwarded to the ESP32-P4 via ESP-NOW (using the onboard ESP32-C6 chip on the ESP32-P4-Function-EV-Board), enabling remote control.

This article provides a detailed guide covering mechanical assembly, motor control, vision calibration, and system integration for both the leader arm and follower arm. It covers the fundamental principles of robotics and visual applications. Additionally, leveraging the powerful performance of the ESP32-P4, the robotic arm can be extended to various application scenarios.

Leader Robotic Arm (TRLC DK1)

#

The leader robotic arm is derived from the leader section of trlc-dk1. It should be noted that the leader has been updated to v0.2.0 structure, but this article uses the initial version structure. You can download the initial version 3D files here.

The full leader project is available here, which primarily implements position control and torque‑switching for the XL330_M077 bus servo.

Mechanical Assembly

#

XL330_M077 Bus Servo Configuration

#

Before the formal assembly, configure the 7 XL330_M077 bus servos using DYNAMIXEL Protocol 2.0. Prepare the bus servo driver board in advance (which converts the standard serial signals into the DATA signals for the bus servos). Refer to the following circuit or the official debugging circuit for the XL330-M077.

After connecting the bus servos, driver board, and USB-to-TTL converter, click the Scan button in the menu bar of the DYNAMIXEL Protocol 2.0 application to search for the servos on the bus:

In order to ensure consistency with the servo parameters in the leader project, configure the servos according to the following requirements:

• ID: Set the servo IDs from 1 to 7
• Baud rate: Set the baud rate of all servos to 115200
• Operating mode: Set the mode of all servos to position control
• Initial angle: Set the starting angle of all servos to 180 degrees (2045)

Structural Assembly

#

After printing all the structures, assemble all XL330_M077 servos at the initial angle of 180 degrees. The screws required for the structure are provided in the XL330_M077 packaging box.

ESP32-C3 Driver Board Installation and Debugging

#

The ESP32-C3 driver board integrates the ESP32-C3 with the bus-servo circuitry into a complete driver module. It supports powering both the XL330_M077 and the ESP32-C3 from an external 5 V supply; ensure the external 5 V source can deliver at least 1 A. In addition, by connecting to the onboard Micro-USB port, the ESP32-C3 can be directly flashed and debugged. Download the PCB Gerber files for PCB prototyping here.

Before building the leader project, set up the ESP-IDF Release v5.5 environment. Refer to Get Started to install and configure ESP-IDF v5.5.

Next, clone esp-iot-solution locally, activate the ESP-IDF v5.5 environment, and enter the leader directory to build, flash, and monitor:

git clone git@github.com:espressif/esp-iot-solution.git
cd esp-iot-solution/examples/robot/ragtime_panthera/leader
idf.py set-target esp32c3
# Replace /dev/ttyACM0 with your actual port
# Enter `ls /dev/ttyACM*` to view available ports
idf.py -p /dev/ttyACM0 build flash monitor

For additional configuration, run idf.py menuconfig and navigate to (Top) → Example Configuration:

Hardware Configuration includes the basic configuration for XL330_M077 bus servos, including baud rate, TX/RX pins, initial position, and angle tolerance:

The configurations required are as follows:

• XL330_M077 Configuration: To change the UART settings or communication pins, modify XL330_M077 communication speed, XL330_M077 RXD pin number, and XL330_M077 init position.
• Initial angle: By default, the program defines the zero position as the current angle minus the configured initial angle; this depends on the angles set during mechanical assembly.
• Angle tolerance: After power-on, the program commands all servos to return to their initial positions. Due to inertia, multiple position-write cycles may be required to reach the target. When the difference between the target angle and the current angle is less than the angle tolerance, the program considers the servo to have reached the target.

ESP-NOW Configuration includes configuration for channel, primary master key, and slave MAC address:

The configurations required are as follows:

• Channel: Defaults to 1; no change needed unless required.
• Primary master key: Defaults to bot12345678901234; no change needed unless required.
• Slave MAC address: Defaults to 9c:9e:6e:52:f8:b8; update it to the receiver’s MAC address used in the follower project.

Note: ESP-NOW is a wireless communication protocol defined by Espressif, which enables the direct, quick and low-power control of smart devices, without the need for a router. ESP-NOW can work with Wi-Fi and Bluetooth LE, and supports the ESP8266, ESP32, ESP32-S and ESP32-C series of SoCs. It’s widely used in smart-home appliances, remote controlling, sensors, etc.

Follower Robotic Arm (Ragtime Panthera)

#

The follower robotic arm project originates from the Ragtime_Panthera project, which uses DM joint motors to drive the arm and provides complete ROS and Python codebases. In addition, the follower arm is structurally identical to the leader arm, so the follower can be directly teleoperated via the leader.

Kinematics

#

In the Ragtime_Panthera project, the robotic arm is described using URDF (an XML-based robot description format). However, on MCU platforms there is no support for URDF and kinematics libraries. Therefore, on the ESP32-P4 we describe the Ragtime_Panthera arm with Denavit–Hartenberg (D-H) parameters and implement inverse kinematics using an iterative method.

Before debugging, use robotics-toolbox-python to pre‑validate the Denavit–Hartenberg (D-H) parameters and study the basics of forward and inverse kinematics (it is the Python version of the MATLAB Robotics Toolbox):

pip3 install roboticstoolbox-python

Next, view the follower robotic arm in the simulation environment:

import numpy as np
from roboticstoolbox import DHRobot, RevoluteDH

robot = DHRobot(
    [
        RevoluteDH(a=0.0, d=0.1005, alpha=-np.pi / 2, offset=0.0),
        RevoluteDH(a=0.18, d=0.0, alpha=0.0, offset=np.deg2rad(180)),
        RevoluteDH(a=0.188809, d=0.0, alpha=0.0, offset=np.deg2rad(162.429)),
        RevoluteDH(a=0.08, d=0.0, alpha=-np.pi / 2, offset=np.deg2rad(17.5715)),
        RevoluteDH(a=0.0, d=0.0, alpha=np.pi / 2, offset=np.deg2rad(90)),
        RevoluteDH(a=0.0, d=0.184, alpha=np.pi / 2, offset=np.deg2rad(-90)),
    ],
    name="Ragtime_Panthera"
)

robot.teach(np.array([0, 0, 0, 0, 0, 0]))

Forward Kinematics

#

Forward kinematics refers to calculating the end-effector’s position and orientation from input joint angles. Use the following code to test the forward kinematics:

import matplotlib.pyplot as plt
import numpy as np
from roboticstoolbox import DHRobot, RevoluteDH

robot = DHRobot(
    [
        RevoluteDH(a=0.0, d=0.1005, alpha=-np.pi / 2, offset=0.0),
        RevoluteDH(a=0.18, d=0.0, alpha=0.0, offset=np.deg2rad(180)),
        RevoluteDH(a=0.188809, d=0.0, alpha=0.0, offset=np.deg2rad(162.429)),
        RevoluteDH(a=0.08, d=0.0, alpha=-np.pi / 2, offset=np.deg2rad(17.5715)),
        RevoluteDH(a=0.0, d=0.0, alpha=np.pi / 2, offset=np.deg2rad(90)),
        RevoluteDH(a=0.0, d=0.184, alpha=np.pi / 2, offset=np.deg2rad(-90)),
    ],
    name="Ragtime_Panthera"
)

state = np.deg2rad([0, 30, -36, 65, 0, 0])
T1 = robot.fkine(state)
print("T1:\n{}".format(T1))

robot.plot(state, jointaxes=True, eeframe=True, block=True)
plt.show()

T1:
   0.8572    0.515     0         0.1531
   0         0         1         0
   0.515    -0.8572    0         0.03971
   0         0         0         1

Using the fkine function, the end-effector’s position and orientation at the current joint angles can be quickly calculated.

Inverse Kinematics

#

Inverse kinematics refers to calculating the required rotation angle for each joint from the input end-effector position and orientation. Use the following code to test inverse kinematics:

import matplotlib.pyplot as plt
import numpy as np
from roboticstoolbox import DHRobot, RevoluteDH

robot = DHRobot(
    [
        RevoluteDH(a=0.0, d=0.1005, alpha=-np.pi / 2, offset=0.0),
        RevoluteDH(a=0.18, d=0.0, alpha=0.0, offset=np.deg2rad(180)),
        RevoluteDH(a=0.188809, d=0.0, alpha=0.0, offset=np.deg2rad(162.429)),
        RevoluteDH(a=0.08, d=0.0, alpha=-np.pi / 2, offset=np.deg2rad(17.5715)),
        RevoluteDH(a=0.0, d=0.0, alpha=np.pi / 2, offset=np.deg2rad(90)),
        RevoluteDH(a=0.0, d=0.184, alpha=np.pi / 2, offset=np.deg2rad(-90)),
    ],
    name="Ragtime_Panthera"
)

state = np.deg2rad([0, 30, -36, 65, 0, 0])
T1 = robot.fkine(state)
print("T1:\n{}".format(T1))

T2 = np.array(T1)
T2[0, 3] = T2[0, 3] + 0.1
print("T2:\n{}".format(T2))

sol = robot.ikine_LM(T2, q0=state, ilimit=100, mask=[1, 1, 1, 1, 1, 0], joint_limits=True)
print(sol)

T3 = robot.fkine(sol.q)
print("T3:\n{}".format(T3))

robot.plot(sol.q, jointaxes=True, eeframe=True, block=True)
plt.show()

In this example, based on the initial pose, we attempt to move the end-effector 0.1 m in the positive X direction and solve for the joint angles sol.q at the current pose. We then verify the result by applying forward kinematics:

T1:
   0.8572    0.515     0         0.1531
   0         0         1         0
   0.515    -0.8572    0         0.03971
   0         0         0         1

T2:
[[ 8.57171795e-01  5.15030595e-01  1.04973270e-16  2.53139272e-01]
 [-1.54001208e-16  5.24866348e-17  1.00000000e+00  1.49891524e-17]
 [ 5.15030595e-01 -8.57171795e-01  1.24305397e-16  3.97085648e-02]
 [ 0.00000000e+00  0.00000000e+00  0.00000000e+00  1.00000000e+00]]
IKSolution: q=[0, 1.161, -0.8568, 0.725, 0, 0], success=True, iterations=4, searches=1, residual=4.59e-10

T3:
   0.8572    0.515     0         0.2531
   0         0         1         0
   0.515    -0.8572    0         0.03971
   0         0         0         1

From the test results, the inverse kinematics calculation is valid, and the forward kinematics result from the inverse solution matches the expected pose.

Workspace Testing Based on Forward and Inverse Kinematics

#

Since the current project does not support pose estimation, we need to consider changing the end-effector position at a fixed orientation to determine the robotic arm’s workspace boundaries and avoid moving the arm to regions where inverse kinematics cannot be solved:

import numpy as np
from roboticstoolbox import DHRobot, RevoluteDH

robot = DHRobot(
    [
        RevoluteDH(a=0.0, d=0.1005, alpha=-np.pi / 2, offset=0.0),
        RevoluteDH(a=0.18, d=0.0, alpha=0.0, offset=np.deg2rad(180)),
        RevoluteDH(a=0.188809, d=0.0, alpha=0.0, offset=np.deg2rad(162.429)),
        RevoluteDH(a=0.08, d=0.0, alpha=-np.pi / 2, offset=np.deg2rad(17.5715)),
        RevoluteDH(a=0.0, d=0.0, alpha=np.pi / 2, offset=np.deg2rad(90)),
        RevoluteDH(a=0.0, d=0.184, alpha=np.pi / 2, offset=np.deg2rad(-90)),
    ],
    name="Ragtime_Panthera"
)

state = np.deg2rad([0, 30, -36, 65, 0, 0])
T1 = robot.fkine(state)
print("T1:\n{}".format(T1))

x_range = np.linspace(0, 23, 30)
y_range = np.linspace(-15, 15, 30)

for dx in x_range:
    for dy in y_range:
        T_test = np.array(T1).copy()
        T_test[0, 3] += dx / 100
        T_test[1, 3] += dy / 100

        sol = robot.ikine_LM(T_test, q0=state)
        if sol.success:
            pass
        else:
            print(f"Failed in dx: {dx:.4f} cm, dy: {dy:.4f} cm")

print("Test Done")

In this example, based on the initial pose, we attempt to solve inverse kinematics at a fixed orientation within a 23 cm × 30 cm region. From the test results, all points within this region can be successfully solved using inverse kinematics.

ESP32-P4 Onboard Kinematics Testing

#

To enable the ESP32-P4 to independently control the robotic arm, onboard kinematics is essential. Inspired by Matrix_and_Robotics_on_STM32, we attempted to port and deploy it on the ESP32 platform. The kinematic component can be introduced in a separate project and tested. Note that this project only ports the kinematics part and does not yet support dynamics.

Taking Inverse Kinematics as an example, after setting up the ESP-IDF v5.5 environment, test it in the examples/robot/ragtime_panthera/follower project. The project has already added kinematic as a component:

#include <stdio.h>
#include <iostream>
#include "kinematic.h"

extern "C" void app_main(void)
{
    Kinematic kinematic;
    Joint j1 = Joint(0.0, DEG2RAD(30.0), DEG2RAD(-36.0), DEG2RAD(65.0), 0.0, 0.0);
    TransformMatrix t1;
    kinematic.solve_forward_kinematics(j1, t1);
    std::cout << "t1: " << std::endl;
    t1.print();

    TransformMatrix t2 = t1;
    t2(0, 3) += 0.1f;
    std::cout << "t2: " << std::endl;
    t2.print();

    Joint j2 = j1;
    kinematic.solve_inverse_kinematics(t2, j2);
    std::cout << "j2: " << std::endl;
    for (int i = 0; i < 6; i++) {
        std::cout << j2[i] << " ";
    }
    std::cout << std::endl;

    TransformMatrix t3;
    kinematic.solve_forward_kinematics(j2, t3);
    std::cout << "t3: " << std::endl;
    t3.print();
}

t1:
Transform Matrix:
[  0.8572,   0.5150,  -0.0000,   0.1531]
[  0.0000,  -0.0000,   1.0000,  -0.0000]
[  0.5150,  -0.8572,  -0.0000,   0.0397]
[  0.0000,   0.0000,   0.0000,   1.0000]
t2:
Transform Matrix:
[  0.8572,   0.5150,  -0.0000,   0.2531]
[  0.0000,  -0.0000,   1.0000,  -0.0000]
[  0.5150,  -0.8572,  -0.0000,   0.0397]
[  0.0000,   0.0000,   0.0000,   1.0000]
j2:
-4.71993e-13 1.1615 -0.856673 0.724918 -2.53619e-13 -4.4205e-13
t3:
Transform Matrix:
[  0.8572,   0.5150,  -0.0000,   0.2531]
[  0.0000,  -0.0000,   1.0000,  -0.0000]
[  0.5150,  -0.8572,  -0.0000,   0.0397]
[  0.0000,   0.0000,   0.0000,   1.0000]

From the test results, the ESP32-P4 Onboard Kinematics results are consistent with the Inverse Kinematics test results.

URDFly (Optional)

#

URDF (Unified Robot Description Format) is an XML-based standard for describing a robot’s kinematic structure and basic dynamic properties. It is used to define links, joints, inertial parameters, joint limits, as well as collision and visual geometries. URDF is widely adopted in robotics as the common model format in the ROS ecosystem, and is natively supported by mainstream simulation and motion-planning tools such as Gazebo, RViz, and MoveIt.

However, URDF is relatively complex on MCU platforms, and it is more suitable to use D-H parameters to describe the robotic arm and perform forward and inverse kinematics. Use URDFly or other similar tools to parse URDF into D-H parameters.

Taking Ragtime_Panthera as an example, after cloning URDFly and installing all dependencies according to the README, follow these steps to visualize and convert the Ragtime_Panthera URDF:

1. Replace package://panther_description in the URDF file with ../

2. Open URDFly and load the modified URDF file

(urdfly) PS D:\project\github\URDFly> python .\main.py

Drag the sliders on the right to move each joint. Click the buttons on the left to obtain MDH parameters and other information.

Joint Motor Debugging

#

Before officially starting to debug DM motors, refer to the DM Motor Getting Started Guide to understand the DM motor control process. Download the DM Debug Tool v.1.6.8.6 here.

When opening the DM motor kit (using DM4310-24V as an example), the following components are included:

Connect all components in the kit according to the wiring diagram below, provide 24 V power to the power adapter board, and connect the PC to the USB-to-CAN module via a USB Type-C cable:

Next, open the DM debug tool and test it. Select the correct serial port and try to read parameters in the Parameter Settings tab:

When the parameters are successfully read, it indicates that the motor connection is successful. Try position mode testing in the Debug tab:

Mechanical Assembly

#

After gaining a preliminary understanding of the kinematics and DM motors mentioned above, follow the steps below to assemble the follower robotic arm. Before that, prepare the following materials:

• ESP32-P4-Function-EV-Board: Consists of the ESP32-P4 development board and a 7-inch MIPI DSI capacitive touchscreen (1024 × 600)
• CAN module: Used to connect the ESP32-P4 with DM motors
• USB camera: The resolution selected for this project is 640 × 480. Confirm that the selected USB camera supports this resolution
• XT30 2+2 dual-end cables: Used to connect the motors together. Prepare at least 6 cables
• Various CNC and sheet metal structural components: This will be detailed in the structural assembly section
• 24 V power supply: Used to power the DM motors
• DM motors: 4x DM4340, 2x DM4310, and 1x DMH3510

Note: In the original Ragtime_Panthera project, a combination of 3x DM4310, 3x DM4340, and 1x DMH3510 was used, where DM4310 was used for base_link rotation. However, during actual operation, due to the large inertia of the robotic arm when extended, the base_link DM4310 was eventually replaced with DM4340. No additional structural modifications are required.

DM Motor Configuration

#

Before installing the motors into the mechanical structure, use the DM debug tool to preset the Master ID and CAN ID for each motor:

Structural Assembly

#

Before assembly, refer to the BOM to prepare the required materials in advance, such as screws, nuts, fixing plates, sliders, rails, wires, etc. In addition, due to the variety of materials involved, they need to be processed using different manufacturing methods:

• Sheet Metal Fabrication

  • Joint 1-2 connector: The machining holes require threads. See here. Choose stainless steel 304 material
  • Joint 2-3 link: The machining holes require threads. See here. Choose stainless steel 304 material
  • Joint 3-4 link: The machining holes require threads. See here. Choose stainless steel 304 material
  • Joint 4-5 connector: No thread requirement. Choose aluminum alloy 5052 material
  • Joint 5-6 connector: No thread requirement. Choose aluminum alloy 5052 material

• CNC Machining

  • Base plate: No thread requirement. Choose aluminum alloy 6061 material

You can use online machining suppliers such as JLC for processing. In addition, the remaining materials can be 3D printed.

ESP32-P4-Function-EV-Board Installation and Debugging

#

Since the follower project uses the ESP32-P4-Function-EV-Board kit, install the LCD screen on the ESP32-P4-Function-EV in advance. Refer to the User Guide for initial hardware and software testing:

Hardware Connection and Project Compilation

#

After cloning the follower project, use idf.py menuconfig to enter (Top) → Panthera Follower Configuration to configure the project, such as CAN TX/RX pins, C6 firmware flashing pins, etc.

git clone git@github.com:espressif/esp-iot-solution.git
cd esp-iot-solution/examples/robot/ragtime_panthera/follower
idf.py set-target esp32p4
idf.py menuconfig
idf.py build

• Direct control robot arm via console: Enable this option. When using idf.py monitor, the follower can be directly controlled in the terminal using commands
• Hardware Configuration: Used to configure the connection between ESP32-P4 and the CAN module. By default, TX is GPIO24 and RX is GPIO25
• Leader and Follower Gripper Mapping: Used to configure the gripper angle mapping relationship between the leader and follower robotic arms. By default, it uses radians and is multiplied by 100
• Leader and Follower Angle Inversion: Used to configure whether the angles between the leader and follower robotic arms need to be inverted. Due to differences in mechanical structure installation, the positive direction of joint rotation may differ. Use the right-hand rule to determine the positive rotation direction of each joint and set whether the corresponding joint needs to be inverted
• Receiver Serial Flash Config: Used to configure the ESP-NOW receiver for the follower. Since the current esp-hosted-mcu does not support ESP-NOW, the project independently implements ESP-NOW packet reception on the ESP32-C6 side and uses esp-serial-flasher to download the firmware to ESP32-C6. By default, the ESP32-C6 RX, TX, Reset, and Boot pins are connected to GPIO6, GPIO5, GPIO54, and GPIO53, respectively:

IMPORTANT: For the first firmware compilation, enable the Direct control robot arm via console and Enable update C6 Flash options, and complete the wiring according to the default configuration.

Flashing and Running

#

Taking Linux as an example, after completing the compilation, connect the ESP32-P4 to the PC. The system will automatically generate a serial port device node (e.g., /dev/ttyUSB0), which can then be used for firmware download and serial port log debugging:

idf.py -p /dev/ttyUSB0 flash monitor

After flashing is complete, test console commands in the terminal. The following commands are currently supported:

After flashing the firmware for the first time, execute the panthera_read_position command to verify whether motor communication is normal. Under normal circumstances, the angle information of all added motors should be obtained. When executing panthera_enable on, all motors should light up with green LEDs, and when executing panthera_enable off, all motors will return to red LEDs. Additionally, adjust the follower robotic arm to the structural zero position and enter panthera_set_zero to align the structural zero with the motor zero.

You can directly start all motors, execute grasping actions (provided that the vision calibration matrix has been calibrated), return to zero, and set zero on the screen.

Vision Calibration

#

For vision calibration, this article adopts an eye-to-hand configuration, where both the camera and robotic arm positions are fixed, which is much simpler compared to eye-in-hand configurations. Before formal calibration, move the robotic arm to specific positions and record the corresponding pixel coordinates at those positions. To simplify the calibration process, create a separate calibration board and place AprilTag markers at specific positions, which can then be recognized by a PC to directly generate the calibration matrix:

Refer to the approach shown in the figure above: place the robotic arm on a 300 mm × 300 mm plate, fix the camera on one side of a 300 mm × 600 mm plate, and use the following script for calibration:

import numpy as np

A = np.array([[170, 250, 331, 332, 246, 247],
              [232, 227, 228, 375, 377, 291]])
B = np.array([[0.4431, 0.4431, 0.4431, 0.17, 0.17, 0.3277],
              [0.15, 0, -0.15, -0.15, 0, -0.1],
              [0.0397, 0.0397, 0.0397, 0.0397, 0.0397, 0.0397]])


A_hom = np.vstack([A, np.ones(A.shape[1])])

M = np.zeros((3, 3))

for i in range(3):
    m_i, _, _, _ = np.linalg.lstsq(A_hom.T, B[i, :], rcond=None)
    M[i, :] = m_i

print(repr(M))

flat = M.flatten()
print_str = 'panthera_set_vision_matrix'
for idx, val in enumerate(flat, start=1):
    print_str += f' -{idx} {val:.6f}'
print(print_str)

for i in range(A.shape[1]):
    a = np.array([0, 0, 1])
    a[0] = A[0][i]
    a[1] = A[1][i]
    b = M @ a
    print(repr(b))

The results from the above script cannot be directly used as the calibration results for the project, as they depend on the position and angle of the camera installation. Use the panthera_set_vision_matrix command to move the robotic arm end-effector to each point in B, record the pixel coordinates of these points, and replace A. Alternatively, attach AprilTag markers at these points to facilitate PC recognition of pixel positions.

After calibration is complete, directly input the output command into the idf monitor terminal, and the calibration data will be automatically saved to NVS.

Object Detection

#

This article uses the color_detect model by default to detect green blocks as targets for the robotic arm to grasp:

Additionally, esp-dl provides many other AI models. Visit esp-dl to access more on-board AI models.

Target Grasping

#

After completing the calibration, correctly saving the parameters to NVS, and properly inserting the USB camera into the high-speed USB port of the ESP32-P4-Function-EV-Board, the LCD screen will display the camera feed. Place a green block to check whether it is correctly detected on the screen, and click the Grasp button to attempt grasping.

Note: The current follower project only integrates green color detection. In future maintenance, we will attempt to support recognition of more objects.

Leader and Follower Robotic Arm Synchronization

#

The leader and follower robotic arms communicate via ESP-NOW (currently only supporting one-way transmission from leader to follower). Use the leader robotic arm to synchronize joint angle information to the follower robotic arm via ESP-NOW to achieve remote control. Click the Sync and Enable switches on the screen to enable synchronization.

The data packet for the leader’s servo angles is structured as follows: a header (2 bytes), 7 servo joint data items (7*2 bytes), and a CRC check (2 bytes):

If synchronization issues are encountered, check for the following problems:

• ESP32-C6 firmware issue: Check whether the ESP32-C6 firmware for the follower has been downloaded. Open the follower project, run idf.py menuconfig, then navigate to (Top) → Panthera Follower Configuration → Receiver Serial Flash Config, and enable Enable update C6 Flash to complete the initial firmware download. After the download is complete, disable Enable update C6 Flash to save startup time.
• ESP-NOW communication issue: Check whether the receiver MAC address configured in the leader project is correct. Enter the MAC address of the ESP32-C6 in the ESP32-P4-Function-EV-Board.

Summary

#

This article introduces the complete process of implementing a robotic arm project on ESP32-P4, including the fundamentals of kinematics, vision calibration, and remote communication, demonstrating the feasibility of ESP32-P4 in industrial robotic arm applications. Based on this article, you can explore the application boundaries of ESP32-P4.

Feel free to try these examples, implement your own applications, and share your experience!

Resources

#

• Follower_Project: A complete grasping project including DM motor control, kinematics, and vision.
• Leader_Project: XL330_M077 bus servo control and ESP-NOW communication.
• Ragtime_Panthera: Original follower robotic arm project
• Trlc_Dk1: Original leader robotic arm project
• Matrix_and_Robotics_on_STM32: Reference implementation of kinematics for the follower robotic arm.
• URDFly: Convert URDF parameters to MDH parameters.
• Robotics-Toolbox-Python: Python version of the MATLAB Robotics Toolbox.
• ESP_DL: Includes models such as color detection, YOLO, and face detection.
