C++ Components for ESP-IDF

·19 mins·
ESP-IDF Beginner C++ Components
Community author
Christoph Oberle
Table of Contents
This article presents two C++ ESP32 components: wifi_manager for seamless network connection and Deep Sleep for power-saving operation, both easily integrated using provided code examples. It also lists additional ESP-IDF components to streamline development.

Introduction
#

For beginners it is not easy to establish a minimal working environment for the ESP32 SoCs with e.g. Wi-Fi, buttons, LEDs and waking up from Deep Sleep. Unfortunately, such a minimal environment is necessary to get things done. In this article, we will use these C++ components:

  • one for Wi-Fi management to connect the ESP SoC with the local Wi-Fi network
  • one for Deep Sleep operation.

First we describe how C++ components are structured using the examples of the Wi-Fi manager component wifi_manager and the Deep Sleep component deep_sleep.

Then we guide you how to use these C++ components in your ESP program - step by step.

Structure of C++ Components
#

C++ components use C++ classes to encapsulate the complexity of the component. The component user only has to know how to create an instance of the class and how to use the available methods.

1. Wi-Fi Manager as a C++ Component
#

This C++ component is available on the ESP Component Registry at elrebo-de/wifi_manager.

Purpose
#

The easiest method to connect an ESP32 chip with the local network (LAN) is to establish a Wi-Fi connection. With this component there is no need to give the Wi-Fi credentials (SSID and password) in configuration parameters, because it starts a Wi-Fi access point with a login page. This allows to choose the SSID from a list of Wi-Fi networks and enter the password. Then a connection to the given Wi-Fi network is established. The SSID and the password only have to be entered once, because they are stored in non-volatile flash storage, from where they are retrieved on subsequent startups.

Interface
#

Because the complexity of the implementation is hidden inside the C++ class, the public interface is small and easy to use.

class Wifi {
public:
    // Constructor
	Wifi( std::string tag,          // tag for ESP_LOGx
          std::string ssid_prefix,  // AP mode SSID prefix
          std::string language      // Web UI language
	    );
	virtual ~Wifi();

    void RestartStation();

    std::string GetSsid() const;
    std::string GetIpAddress() const;
    int GetRssi() const;
    int GetChannel() const;
    std::string GetMacAddress() const;

    bool IsConnected() const;

Functionality
#

Create an Instance of Class Wifi
#

To use this component you only have to create an instance of class Wifi in the beginning of your program, everything else is done inside the class.

    /* Initialize Wifi class */
    ESP_LOGI(tag, "Wi-Fi");
    Wifi wifi(
		std::string("wifi_manager"), // tag
		std::string("ESP32"), // ssid_prefix
		std::string("de-DE") // language
    );

Call Method IsConnected()
#

A call to the public method isConnected() will only return, when the Wi-Fi network is connected.

    ESP_LOGI(tag, "Wi-Fi is %s", wifi.IsConnected() ? "connected" : "not connected");

So, what happens “under the hood”?

When the method IsConnected() is called for the first time, there are no credentials for the Wi-Fi network available on the ESP chip and the ESP starts a Wi-Fi access point.

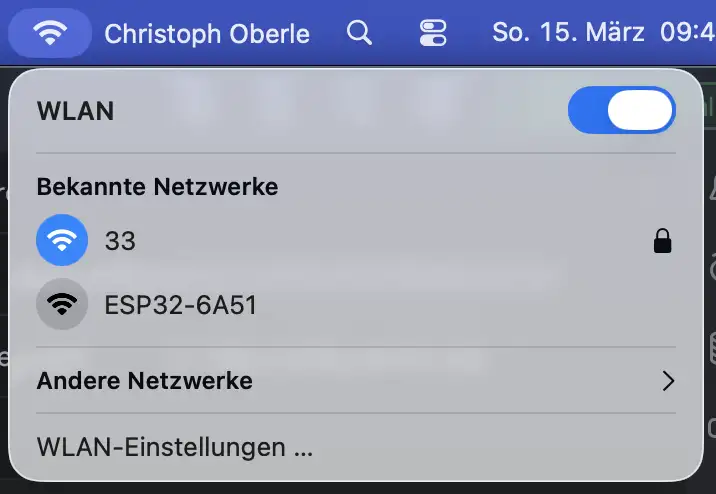

Wi-Fi access point

That’s in german, which depends on your computer’s language settings. Here you can see the Wi-Fi access point of the ESP system named “ESP32-6A51”. The prefix “ESP32” depends on the parameter ssid_prefix in the constructor of class Wifi (see above).

When you connect to this Wi-Fi access point, you see a web page where you can enter the Wi-Fi credentials (SSID and password).

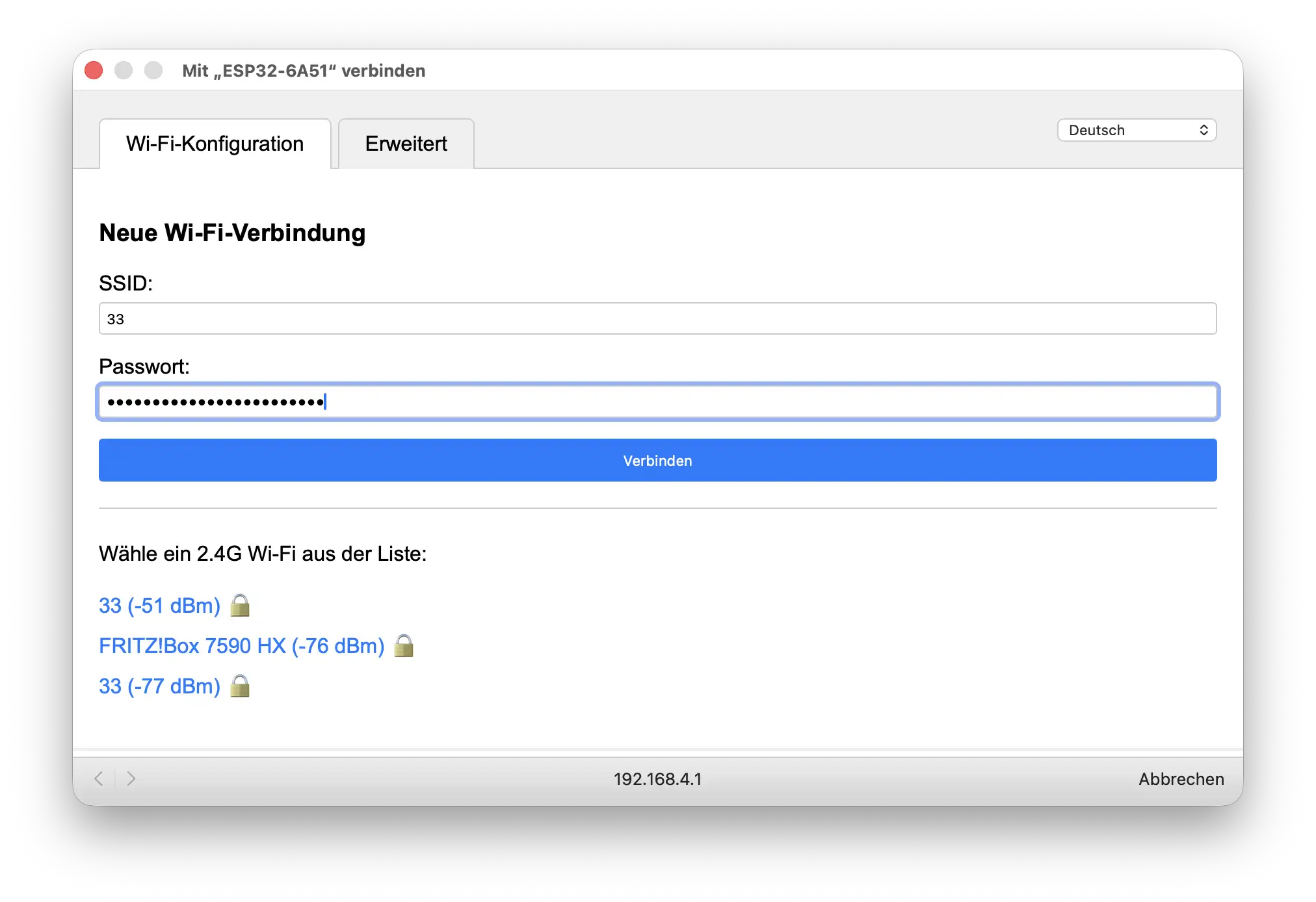

Wi-Fi credentials

That’s in german too, which depends on the parameter language in the constructor of class Wifi (see above).

After entering the credentials they are stored in the non volatile flash storage, the Wi-Fi network is connected and the method IsConnected()returns true.

And when the method IsConnected() is called for the second time, then the credentials are already present in the non volatile flash storage, they are used for connecting to the Wi-Fi network and method IsConnected()returns true without any user interaction and the Wi-Fi network is connected.

Request Connection Information
#

When the network is connected, you can request the technical information with the methods GetSsid(), GetIpAddress(), GetRssi(), GetChannel() and GetMacAddress().

    ESP_LOGI(tag, "Ssid: %s", wifi.GetSsid().c_str());
    ESP_LOGI(tag, "IpAddress: %s", wifi.GetIpAddress().c_str());
    ESP_LOGI(tag, "Rssi: %i", wifi.GetRssi());
    ESP_LOGI(tag, "Channel: %i", wifi.GetChannel());
    ESP_LOGI(tag, "MacAddress: %s", wifi.GetMacAddress().c_str());

2. Deep Sleep as a C++ Component
#

This C++ component is available on the ESP Component Registry at elrebo-de/deep_sleep .

Purpose
#

Sometimes you want to enter Deep Sleep mode after your SoC has done its work. Wake up could be triggered by different events. This component allows to go to Deep Sleep and to wake up after a certain time or when a button is pressed. The boot count is incremented with every boot process.

Interface
#

Because the complexity of the implementation is hidden inside the C++ class, the public interface is small and easy to use.

class DeepSleep {
public:
    // Constructor
	DeepSleep( std::string tag,
	           int *bootCount
	         );
	virtual ~DeepSleep();

	esp_sleep_wakeup_cause_t GetWakeupReason();

    esp_err_t EnableTimerWakeup( unsigned long sleepTime,
                            std::string sleepTimeUnit // {"min", "sec", "milliSec", "microSec"}
                          );
    esp_err_t EnableGpioWakeup( gpio_num_t gpio,
                           int level  // level: 1 = High, 0 = Low
                          );
	esp_err_t GoToDeepSleep();

Functionality
#

Create an Instance of Class DeepSleep
#

To use this component you have to create an instance of class DeepSleep and to define variable bootCount as an RTC_DATA_ATTR in the beginning of your program.

#include "deep_sleep.hpp"
RTC_DATA_ATTR int bootCount = 0;

extern "C" void app_main(void)
{
    /* Initialize DeepSleep class */
    ESP_LOGI(tag, "DeepSleep");
    DeepSleep deepSleep(
		std::string("DeepSleep"), // tag
		&bootCount // Address of int bootCount in RTC_DATA
    );

Because the variable bootCount is declared as an RTC_DATA_ATTR, its value is remembered after Deep Sleep.

Show the bootCount and find out the Wakeup Reason
#

You can also find out, what the wakeup reason was by calling GetWakeupReason().

    /* Deep Sleep: show bootCount */
    ESP_LOGI(tag, "bootCount: %i", bootCount);

    ESP_LOGI(tag, "GetWakeupReason");
    esp_sleep_wakeup_cause_t wakeupReason = deepSleep.GetWakeupReason();

    switch(wakeupReason) {
        case ESP_SLEEP_WAKEUP_EXT0 : ESP_LOGI(tag, "Wakeup caused by external signal using RTC_IO"); break;
        case ESP_SLEEP_WAKEUP_EXT1 : ESP_LOGI(tag, "Wakeup caused by external signal using RTC_CNTL"); break;
        case ESP_SLEEP_WAKEUP_TIMER : ESP_LOGI(tag, "Wakeup caused by timer"); break;
        case ESP_SLEEP_WAKEUP_TOUCHPAD : ESP_LOGI(tag, "Wakeup caused by touchpad"); break;
        case ESP_SLEEP_WAKEUP_ULP : ESP_LOGI(tag, "Wakeup caused by ULP program"); break;
        case ESP_SLEEP_WAKEUP_GPIO : ESP_LOGI(tag, "Wakeup caused by gpio"); break;
        default : ESP_LOGI(tag, "Wakeup was not caused by deep sleep: %d",wakeupReason); break;
    }

Configure the Wakeup Sources
#

Once your application has completed its tasks, configure the desired wake up source, either a timer or a GPIO button or both. This is done with methods EnableTimerWakeup and EnableGpioWakeup.

    ESP_LOGI(tag, "EnableTimerWakeup");
    ESP_ERROR_CHECK(deepSleep.EnableTimerWakeup(30, "sec"));  // enable wake up after 30 seconds sleep time

    ESP_LOGI(tag, "EnableGpioWakeup");
        ESP_ERROR_CHECK(deepSleep.EnableGpioWakeup((gpio_num_t) 39, 0));  // enable wake up when GPIO 39 is pulled down

Here the program will wake up from Deep Sleep after 30 seconds or when the button on GPIO 39 is pulled down.

Go to Deep Sleep
#

Finally you send the ESP chip to Deep Sleep with method GoToDeepSleep().

    bool rc = false;
    ESP_LOGI(tag, "GoToDeepSleep");
    rc = deepSleep.GoToDeepSleep(); // go to deep sleep

    // this statement will not be reached, if GoToDeepSleep is working
    ESP_LOGI(tag, "GoToDeepSleep rc=%u", rc);
}

How to use these C++ Components in your Project
#

Let us start with an empty ESP program, then we add the Wi-Fi functionality and finally the Deep Sleep functionality.

The source code for Step 1 to Step 6 can be found on GitHub at https://github.com/christoph-oberle/cpp_components_for_esp_idf.git.

Step 1: Create an ESP Project myproject containing an “empty” C++ program
#

Let’s start with setting up a directory structure for our project:

myproject/
   CMakeLists.txt
   main/
      CMakeLists.txt
      main.cpp

There are three files in two directories:

myproject/CMakeLists.txt

The CMakeLists file for the project:

# The following five lines of boilerplate have to be in your project's
# CMakeLists in this exact order for cmake to work correctly
cmake_minimum_required(VERSION 3.16)

include($ENV{IDF_PATH}/tools/cmake/project.cmake)
# "Trim" the build. Include the minimal set of components, main, and anything it depends on.
idf_build_set_property(MINIMAL_BUILD ON)
project(myproject)

This file is needed for the build.

myproject/main/CMakeLists.txt

The CMakeLists.txt file for the main component

idf_component_register(SRCS "main.cpp")

This file defines how the “main” component can be made - the only source is main.cpp.

myproject/main/main.cpp

The main C++ program:

#include "esp_log.h"

static char tag[] = "myproject";

extern "C" void app_main(void)
{
    ESP_LOGI(tag, "Start");

    /* here the "real" work is done! */

    ESP_LOGI(tag, "End");
}

This is the main program! It does nothing except to log the Start and the End of the execution.

To build and execute this project on a ESP32-C3 board, I use these commands in the project’s directory:

source /Users/christophoberle/esp-idf/esp-idf/export.sh
idf.py set-target esp32c3
idf.py build
idf.py flash monitor
  • The source command sets the ESP-IDF environment on my computer. On your computer there will be a different path to the esp-idf directory.
  • idf.py set-target esp32c3 sets the target ESP chip (here it is an ESP32-C3 SoC).
  • idf.py build builds the program.
  • idf.py flash monitor flashes the program onto the chip and monitors the execution.

This is the end of the terminal log:

...

--- 0x403cbf1a: call_start_cpu0 at /Users/christophoberle/esp-idf/esp-idf/components/bootloader/subproject/main/bootloader_start.c:25
I (24) boot: ESP-IDF v5.5.1 2nd stage bootloader
I (24) boot: compile time Mar 19 2026 23:21:17
I (25) boot: chip revision: v0.4
I (25) boot: efuse block revision: v1.3
I (28) boot.esp32c3: SPI Speed      : 80MHz
I (32) boot.esp32c3: SPI Mode       : DIO
I (36) boot.esp32c3: SPI Flash Size : 2MB
I (39) boot: Enabling RNG early entropy source...
I (44) boot: Partition Table:
I (46) boot: ## Label            Usage          Type ST Offset   Length
I (53) boot:  0 nvs              WiFi data        01 02 00009000 00006000
I (59) boot:  1 phy_init         RF data          01 01 0000f000 00001000
I (66) boot:  2 factory          factory app      00 00 00010000 00100000
I (72) boot: End of partition table
I (76) esp_image: segment 0: paddr=00010020 vaddr=3c020020 size=06780h ( 26496) map
I (87) esp_image: segment 1: paddr=000167a8 vaddr=3fc8b600 size=011e0h (  4576) load
I (91) esp_image: segment 2: paddr=00017990 vaddr=40380000 size=08688h ( 34440) load
I (104) esp_image: segment 3: paddr=00020020 vaddr=42000020 size=11dech ( 73196) map
I (117) esp_image: segment 4: paddr=00031e14 vaddr=40388688 size=02e08h ( 11784) load
I (120) esp_image: segment 5: paddr=00034c24 vaddr=50000000 size=00020h (    32) load
I (124) boot: Loaded app from partition at offset 0x10000
I (126) boot: Disabling RNG early entropy source...
I (142) cpu_start: Unicore app
I (150) cpu_start: Pro cpu start user code
I (150) cpu_start: cpu freq: 160000000 Hz
I (151) app_init: Application information:
I (151) app_init: Project name:     myproject
I (155) app_init: App version:      ae6a76f-dirty
I (159) app_init: Compile time:     Mar 19 2026 23:21:11
I (164) app_init: ELF file SHA256:  8c1b970e6...
I (168) app_init: ESP-IDF:          v5.5.1
I (172) efuse_init: Min chip rev:     v0.3
I (176) efuse_init: Max chip rev:     v1.99
I (180) efuse_init: Chip rev:         v0.4
I (184) heap_init: Initializing. RAM available for dynamic allocation:
I (190) heap_init: At 3FC8D610 len 000329F0 (202 KiB): RAM
I (195) heap_init: At 3FCC0000 len 0001C710 (113 KiB): Retention RAM
I (201) heap_init: At 3FCDC710 len 00002950 (10 KiB): Retention RAM
I (207) heap_init: At 50000020 len 00001FC8 (7 KiB): RTCRAM
I (213) spi_flash: detected chip: generic
I (216) spi_flash: flash io: dio
W (219) spi_flash: Detected size(4096k) larger than the size in the binary image header(2048k). Using the size in the binary image header.
I (232) sleep_gpio: Configure to isolate all GPIO pins in sleep state
I (238) sleep_gpio: Enable automatic switching of GPIO sleep configuration
I (245) main_task: Started on CPU0
I (245) main_task: Calling app_main()
I (245) myproject: Start
I (245) myproject: End
I (255) main_task: Returned from app_main()

After 245 msec the main program is started on CPU0, our routine app_main is called, the Start and End of execution is logged and 10 msec later app_main has returned.

Our first ESP program - which does nothing - is working!

Step 2: Add component wifi_manager
#

Now we connect our ESP SoC with the world through a Wi-Fi network connection.

As described on the ESP Component Registry for the component we add it to the project by executing

idf.py add-dependency "elrebo-de/wifi_manager^1.4.2"

myproject/main/idf_component.yml

As a result of this command, an additional file idf_component.yml is added to our project:

## IDF Component Manager Manifest File
dependencies:
  ## Required IDF version
  idf:
    version: '>=4.1.0'
  # # Put list of dependencies here
  # # For components maintained by Espressif:
  # component: "~1.0.0"
  # # For 3rd party components:
  # username/component: ">=1.0.0,<2.0.0"
  # username2/component2:
  #   version: "~1.0.0"
  #   # For transient dependencies `public` flag can be set.
  #   # `public` flag doesn't have an effect dependencies of the `main` component.
  #   # All dependencies of `main` are public by default.
  #   public: true
  elrebo-de/wifi_manager: ^1.4.2

When idf.py set-target esp32c3 is executed, a new directory managed_components is created, which contains the needed components for the wifi_manager.

When we run this program, nothing has changed:

I (245) main_task: Started on CPU0
I (245) main_task: Calling app_main()
I (245) myproject: Start
I (245) myproject: End
I (255) main_task: Returned from app_main()

Step 3: Integrate wifi_manager into your main.cpp program
#

Now we can use the wifi_manager component by including the component’s header file into our main.cpp program and creating an instance of class Wifi. After the call to method IsConnected() our ESP SoC is connected to the Wi-Fi network and we can retrieve the connection information as described above.

myproject/main/main.cpp

The new main.cpp now looks like this:

#include "esp_log.h"
#include "wifi_manager.hpp"

static char tag[] = "myproject";

extern "C" void app_main(void)
{
    ESP_LOGI(tag, "Start");

    /* Initialize Wifi class */
    ESP_LOGI(tag, "Wi-Fi");
    Wifi wifi(
		std::string("wifi_manager"), // tag
		std::string("ESP32"), // ssid_prefix
		std::string("de-DE") // language
    );

    /* Wait until Wi-Fi is connected */
    ESP_LOGI(tag, "Wi-Fi is %s", wifi.IsConnected() ? "connected" : "not connected");

    /* Retrieve connection information */
    ESP_LOGI(tag, "Ssid: %s", wifi.GetSsid().c_str());
    ESP_LOGI(tag, "IpAddress: %s", wifi.GetIpAddress().c_str());
    ESP_LOGI(tag, "Rssi: %i", wifi.GetRssi());
    ESP_LOGI(tag, "Channel: %i", wifi.GetChannel());
    ESP_LOGI(tag, "MacAddress: %s", wifi.GetMacAddress().c_str());

    /* here the "real" work is done! */

    ESP_LOGI(tag, "End");
}

When we run this program the terminal log looks totally different. All the functionality described above is working now. We can enter the credentials on a web page , the credentials are stored in non volatile flash memory and they are retrieved from there in subsequent runs. The end of the terminal log now shows:

I (58601) wifi_manager: Starting station
I (58601) wifi:mode : sta (b0:a6:04:00:6a:50)
I (58601) wifi:enable tsf
I (58601) wifi_manager: wait until Wifi station is connected
I (59601) wifi_manager: wait until Wifi station is connected
I (60601) wifi_manager: wait until Wifi station is connected
I (61011) WifiStation: Found AP: 33, BSSID: 38:10:d5:53:7f:21, RSSI: -49, Channel: 9, Authmode: 7
I (61011) WifiStation: Found AP: 33, BSSID: 74:42:7f:fe:b3:ee, RSSI: -79, Channel: 9, Authmode: 3
W (61021) wifi:Password length matches WPA2 standards, authmode threshold changes from OPEN to WPA2
I (61031) wifi:new :<9,0>, old:<1,0>, ap:<255,255>, sta:<9,0>, prof:1, snd_ch_cfg:0x0
I (61031) wifi:state: init -> auth (0xb0)
I (61841) wifi_manager: wait until Wifi station is connected
I (61851) wifi:state: auth -> assoc (0x0)
I (61861) wifi:state: assoc -> run (0x10)
I (61891) wifi:connected with 33, aid = 7, channel 9, BW20, bssid = 38:10:d5:53:7f:21
I (61891) wifi:security: WPA3-SAE, phy: bgn, rssi: -50
I (61891) wifi:pm start, type: 0

I (61891) wifi:dp: 1, bi: 102400, li: 10, scale listen interval from 1024000 us to 1024000 us
I (61901) wifi:set rx beacon pti, rx_bcn_pti: 0, bcn_timeout: 25000, mt_pti: 0, mt_time: 10000
I (61911) wifi:AP's beacon interval = 102400 us, DTIM period = 1
I (61921) wifi:<ba-add>idx:0 (ifx:0, 38:10:d5:53:7f:21), tid:0, ssn:0, winSize:64
I (62841) wifi_manager: wait until Wifi station is connected
I (62931) esp_netif_handlers: sta ip: 192.168.178.146, mask: 255.255.255.0, gw: 192.168.178.1
I (62931) WifiStation: Got IP: 192.168.178.146
I (63841) wifi_manager: Wifi station is connected
I (63841) myproject: Wi-Fi is connected
I (63841) myproject: Ssid: 33
I (63841) myproject: IpAddress: 192.168.178.146
I (63841) myproject: Rssi: -49
I (63841) myproject: Channel: 9
I (63841) myproject: MacAddress: B0:A6:04:00:6A:50
I (63851) myproject: End
I (63851) main_task: Returned from app_main()

Step 4: Add component Deep Sleep
#

Now we add component Deep Sleep to send our ESP SoC to Deep Sleep after the work is done.

As described on the ESP Component Registry for the component we add it to the project by executing

idf.py add-dependency "elrebo-de/deep_sleep^1.2.1"

myproject/main/idf_component.yml

As a result of this command, the file idf_component.yml now looks like this:

## IDF Component Manager Manifest File
dependencies:
  ## Required IDF version
  idf:
    version: '>=4.1.0'
  # # Put list of dependencies here
  # # For components maintained by Espressif:
  # component: "~1.0.0"
  # # For 3rd party components:
  # username/component: ">=1.0.0,<2.0.0"
  # username2/component2:
  #   version: "~1.0.0"
  #   # For transient dependencies `public` flag can be set.
  #   # `public` flag doesn't have an effect dependencies of the `main` component.
  #   # All dependencies of `main` are public by default.
  #   public: true
  elrebo-de/wifi_manager: ^1.4.2
  elrebo-de/deep_sleep: ^1.2.1

The new dependency on elrebo-de/deep_sleep has been added.

When idf.py set-target esp32c3 is executed, an additional component for Deep Sleep is added into directory managed_components.

Step 5: Integrate deep_sleep into your main.cpp program
#

Now we can use the deep_sleep component by including the component’s header file into our main.cpp program defining an RTC_DATA_ATTR bootCount and creating an instance of class DeepSleep. Then we can retrieve the Wakeup Reason, configure the Wakeup sources and finally go to Deep Sleep.

myproject/main/main.cpp

The new main.cpp now looks like this:

#include "esp_log.h"
#include "wifi_manager.hpp"
#include "deep_sleep.hpp"
RTC_DATA_ATTR int bootCount = 0;

static char tag[] = "myproject";

extern "C" void app_main(void)
{
    ESP_LOGI(tag, "Start");

    /* Deep Sleep: Initialize DeepSleep class */
    ESP_LOGI(tag, "DeepSleep");
    DeepSleep deepSleep(
		std::string("DeepSleep"), // tag
		&bootCount // Address of int bootCount in RTC_DATA
    );

    /* Deep Sleep: show bootCount */
    ESP_LOGI(tag, "bootCount: %i", bootCount);

    /* Deep Sleep: Retrieve the Wakeup reason */
    ESP_LOGI(tag, "GetWakeupReason");
    esp_sleep_wakeup_cause_t wakeupReason = deepSleep.GetWakeupReason();

    switch(wakeupReason) {
        case ESP_SLEEP_WAKEUP_EXT0 : ESP_LOGI(tag, "Wakeup caused by external signal using RTC_IO"); break;
        case ESP_SLEEP_WAKEUP_EXT1 : ESP_LOGI(tag, "Wakeup caused by external signal using RTC_CNTL"); break;
        case ESP_SLEEP_WAKEUP_TIMER : ESP_LOGI(tag, "Wakeup caused by timer"); break;
        case ESP_SLEEP_WAKEUP_TOUCHPAD : ESP_LOGI(tag, "Wakeup caused by touchpad"); break;
        case ESP_SLEEP_WAKEUP_ULP : ESP_LOGI(tag, "Wakeup caused by ULP program"); break;
        case ESP_SLEEP_WAKEUP_GPIO : ESP_LOGI(tag, "Wakeup caused by gpio"); break;
        default : ESP_LOGI(tag, "Wakeup was not caused by deep sleep: %d",wakeupReason); break;
    }

    /* Wi-Fi: Initialize Wifi class */
    ESP_LOGI(tag, "Wi-Fi");
    Wifi wifi(
		std::string("wifi_manager"), // tag
		std::string("ESP32"), // ssid_prefix
		std::string("de-DE") // language
    );

    /* Wi-Fi: Wait until Wi-Fi is connected */
    ESP_LOGI(tag, "Wi-Fi is %s", wifi.IsConnected() ? "connected" : "not connected");

    /* Wi-Fi: Retrieve connection information */
    ESP_LOGI(tag, "Ssid: %s", wifi.GetSsid().c_str());
    ESP_LOGI(tag, "IpAddress: %s", wifi.GetIpAddress().c_str());
    ESP_LOGI(tag, "Rssi: %i", wifi.GetRssi());
    ESP_LOGI(tag, "Channel: %i", wifi.GetChannel());
    ESP_LOGI(tag, "MacAddress: %s", wifi.GetMacAddress().c_str());

    /* here the "real" work is done! */

    /* Deep Sleep: Configure the Wakeup Sources */
    ESP_LOGI(tag, "EnableTimerWakeup");
    ESP_ERROR_CHECK(deepSleep.EnableTimerWakeup(30, "sec"));  // enable wake up after 30 seconds sleep time

    ESP_LOGI(tag, "EnableGpioWakeup");
        ESP_ERROR_CHECK(deepSleep.EnableGpioWakeup((gpio_num_t) 0, 1));  // enable wake up when GPIO 0 is pulled up
    ESP_LOGI(tag, "End");

    /* Deep Sleep: Go to Deep Sleep */
    bool rc = false;
    ESP_LOGI(tag, "GoToDeepSleep");
    rc = deepSleep.GoToDeepSleep(); // go to deep sleep

    // this statement will not be reached, if GoToDeepSleep is working
    ESP_LOGI(tag, "GoToDeepSleep rc=%u", rc);
}

When we run this program the terminal log contains some new entries. In the beginning Deep Sleep is initialized and the Wakeup reason is logged:

I (374) main_task: Started on CPU0
I (374) main_task: Calling app_main()
I (374) myproject: Start
I (374) myproject: DeepSleep
I (384) myproject: GetWakeupReason
I (384) myproject: Wakeup was not caused by deep sleep: 0
I (384) myproject: Wi-Fi
I (394) wifi_manager: Startup

Then after the work is done, the Wakeup sources are configured and the system is entering Deep Sleep mode. After 30 seconds the system wakes up again:

I (6564) myproject: EnableTimerWakeup
I (6564) DeepSleep: Setup chip to sleep for 30 sec
I (6574) myproject: EnableGpioWakeup
I (6574) DeepSleep: GPIO 0 is valid wakeup gpio: true
I (6574) DeepSleep: gpio_config
================IO DUMP Start================
IO[0] -
  Pullup: 0, Pulldown: 1, DriveCap: 2
  InputEn: 1, OutputEn: 1, OpenDrain: 0
  FuncSel: 1 (GPIO)
  GPIO Matrix SigOut ID: 128 (simple GPIO output)
  GPIO Matrix SigIn ID: (simple GPIO input)
  SleepSelEn: 1

=================IO DUMP End=================
I (6614) DeepSleep: esp_deep_sleep_enable_gpio_wakeup
I (6614) myproject: End
I (6614) myproject: GoToDeepSleep
I (6624) DeepSleep: Going to sleep now
--- Error: read failed: [Errno 6] Device not configured
--- Waiting for the device to reconnect...........................................................
I (1544) wifi_manager: wait (max. 30 seconds) until Wifi station is connected
I (2544) wifi_manager: wait (max. 30 seconds) until Wifi station is connected

After 6.614 sec the system is going to Deep Sleep and the connection to the device is lost.

Unfortunately the beginning of the execution after Wakeup is not logged. Logging only restarts 1.544 sec after the restart.

We will fix this issue in the next step, so that we can see the beginning of the log after restart.

Step 6: Delay execution after restart to allow the terminal to reconnect
#

To delay the restart of the ESP SoC, we call the command vTaskDelay from the FreeRTOS package at the very beginning of app_main.

myproject/main/main.cpp

main.cpp now is:

#include "esp_log.h"
#include "wifi_manager.hpp"
#include "deep_sleep.hpp"
RTC_DATA_ATTR int bootCount = 0;
#include "freertos/task.h"

static char tag[] = "myproject";

extern "C" void app_main(void)
{
    /* Delay to reconnect terminal after Wakeup */
    vTaskDelay(pdMS_TO_TICKS(500)); // Delay for 500 msec

    ESP_LOGI(tag, "Start");

    /* Deep Sleep: Initialize DeepSleep class */
    ESP_LOGI(tag, "DeepSleep");
    DeepSleep deepSleep(
		std::string("DeepSleep"), // tag
		&bootCount // Address of int bootCount in RTC_DATA
    );

    /* Deep Sleep: show bootCount */
    ESP_LOGI(tag, "bootCount: %i", bootCount);

    /* Deep Sleep: Retrieve the Wakeup reason */
    ESP_LOGI(tag, "GetWakeupReason");
    esp_sleep_wakeup_cause_t wakeupReason = deepSleep.GetWakeupReason();

    switch(wakeupReason) {
        case ESP_SLEEP_WAKEUP_EXT0 : ESP_LOGI(tag, "Wakeup caused by external signal using RTC_IO"); break;
        case ESP_SLEEP_WAKEUP_EXT1 : ESP_LOGI(tag, "Wakeup caused by external signal using RTC_CNTL"); break;
        case ESP_SLEEP_WAKEUP_TIMER : ESP_LOGI(tag, "Wakeup caused by timer"); break;
        case ESP_SLEEP_WAKEUP_TOUCHPAD : ESP_LOGI(tag, "Wakeup caused by touchpad"); break;
        case ESP_SLEEP_WAKEUP_ULP : ESP_LOGI(tag, "Wakeup caused by ULP program"); break;
        case ESP_SLEEP_WAKEUP_GPIO : ESP_LOGI(tag, "Wakeup caused by gpio"); break;
        default : ESP_LOGI(tag, "Wakeup was not caused by deep sleep: %d",wakeupReason); break;
    }

    /* Wi-Fi: Initialize Wifi class */
    ESP_LOGI(tag, "Wi-Fi");
    Wifi wifi(
		std::string("wifi_manager"), // tag
		std::string("ESP32"), // ssid_prefix
		std::string("de-DE") // language
    );

    /* Wi-Fi: Wait until Wi-Fi is connected */
    ESP_LOGI(tag, "Wi-Fi is %s", wifi.IsConnected() ? "connected" : "not connected");

    /* Wi-Fi: Retrieve connection information */
    ESP_LOGI(tag, "Ssid: %s", wifi.GetSsid().c_str());
    ESP_LOGI(tag, "IpAddress: %s", wifi.GetIpAddress().c_str());
    ESP_LOGI(tag, "Rssi: %i", wifi.GetRssi());
    ESP_LOGI(tag, "Channel: %i", wifi.GetChannel());
    ESP_LOGI(tag, "MacAddress: %s", wifi.GetMacAddress().c_str());

    /* here the "real" work is done! */

    /* Deep Sleep: Configure the Wakeup Sources */
    ESP_LOGI(tag, "EnableTimerWakeup");
    ESP_ERROR_CHECK(deepSleep.EnableTimerWakeup(30, "sec"));  // enable wake up after 30 seconds sleep time

    ESP_LOGI(tag, "EnableGpioWakeup");
        ESP_ERROR_CHECK(deepSleep.EnableGpioWakeup((gpio_num_t) 0, 1));  // enable wake up when GPIO 0 is pulled up
    ESP_LOGI(tag, "End");

    /* Deep Sleep: Go to Deep Sleep */
    bool rc = false;
    ESP_LOGI(tag, "GoToDeepSleep");
    rc = deepSleep.GoToDeepSleep(); // go to deep sleep

    // this statement will not be reached, if GoToDeepSleep is working
    ESP_LOGI(tag, "GoToDeepSleep rc=%u", rc);
}

As you see in the terminal log, the first ESP_LOGI call is seen at 894 msec and the Wakeup reason is shown too.

I (7294) myproject: End
I (7294) myproject: GoToDeepSleep
I (7304) DeepSleep: Going to sleep now
--- Error: read failed: [Errno 6] Device not configured
--- Waiting for the device to reconnect...........................................................
I (894) myproject: Start
I (894) myproject: DeepSleep
I (894) myproject: GetWakeupReason
I (894) myproject: Wakeup caused by timer
I (894) myproject: Wi-Fi
I (894) wifi_manager: Startup
I (904) wifi_manager: Initializing...

Summary: What did we achieve
#

In a program with only 75 lines of code we have set up a run time environment in our ESP32 SoC which connects to a local Wi-Fi network and goes to Deep Sleep after it has done its work. The Wakeup reason can be configured(timer and/or button) and the bootCount and the Wakeup reason can be retrieved in the program.

Now in the file myproject/main/main.cpp, we can start adding the actual functionality of our project at the line:

    /* here the "real" work is done! */

Available Components for a Minimal Working Environment
#

Currently there are the following components ready to use with ESP IDF V5.5+ published on ESP Component Registry.

Disclaimer:

This article was written by a partner or community author. The views and recommendations expressed are those of the author and do not necessarily reflect those of Espressif. Espressif cannot guarantee that the content will remain up to date. Ongoing maintenance and updates are the responsibility of the author.

Related

ESP-IDF tutorial series: GPIO get started - Part 1

ESP-IDF tutorial series: GPIO get started - Part 1

··12 mins
ESP-IDF Beginner Tutorial GPIO LED
This article explains how to configure and control GPIO pins on Espressif SoCs, covering push-pull and open-drain output modes, drive capability, and library usage. It then provides a hands-on example of blinking an LED using gpio_set_direction and gpio_set_level on a ESP32-C61-DevKitC.
