ESP-IDF Adv. - Assign. 4.2

·1 min·
Table of Contents
Create a custom partition table

In this assignment, you’ll set a custom partiton table using VSCode.

Assignment steps
#

First, you need to enable the custom partition table in the menuconfig

  • Open menuconfig: > ESP-IDF: SDK Configuration Editor (menuconfig)
    → Partition Table → Custom Partition Table CSV
  • Open editor: > ESP-IDF: Open Partition Table Editor UI
  • Copy the previous partition table
  • Add a spiffs partition

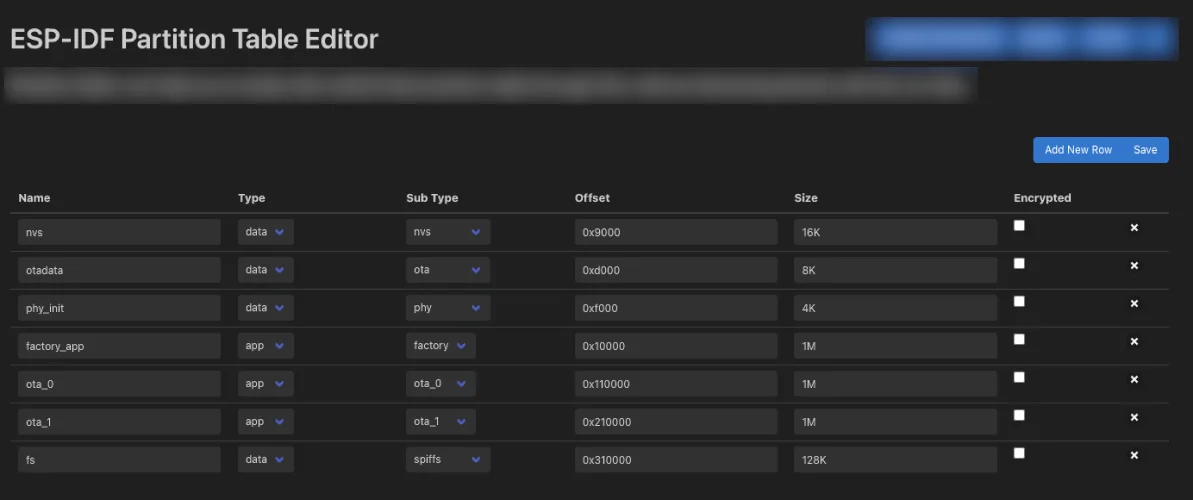

Custom partition table

Custom partition table

  • Build the partition table: > ESP-IDF: Build Partition Table
  • Flash the partition table: > ESP-IDF: Flash (UART) Your Project
Parsing binary partition input...
Verifying table...
# ESP-IDF Partition Table
# Name, Type, SubType, Offset, Size, Flags
nsv,data,nvs,0x9000,16K,
otadata,data,ota,0xd000,8K,
phy_init,data,phy,0xf000,4K,
factory_app,app,factory,0x10000,1M,
ota_0,app,ota_0,0x110000,1M,
ota_1,app,ota_1,0x210000,1M,
fs,data,spiffs,0x310000,64K,

Next step: assignment 4.3
